Install aftermarket amplifier, speakers of choice in select 2000-06 X100 and 2000-03 X308 Jaguar Premium ICE systems.

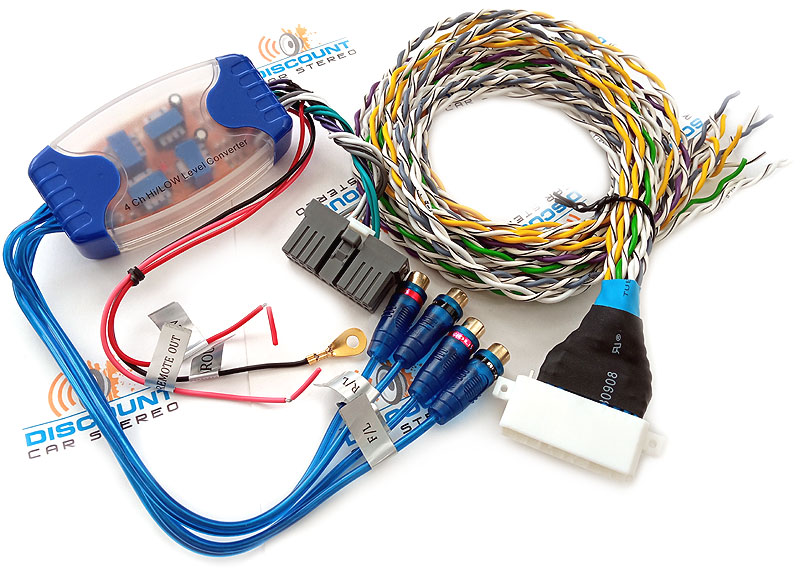

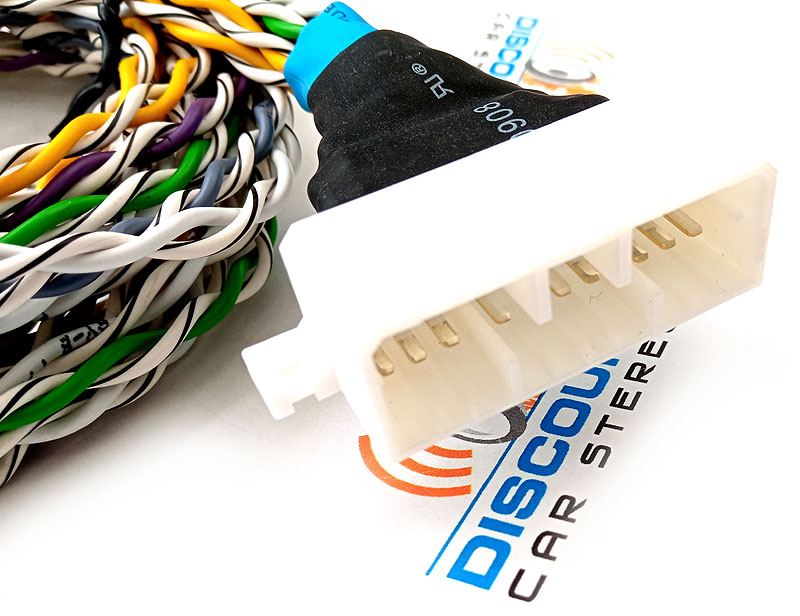

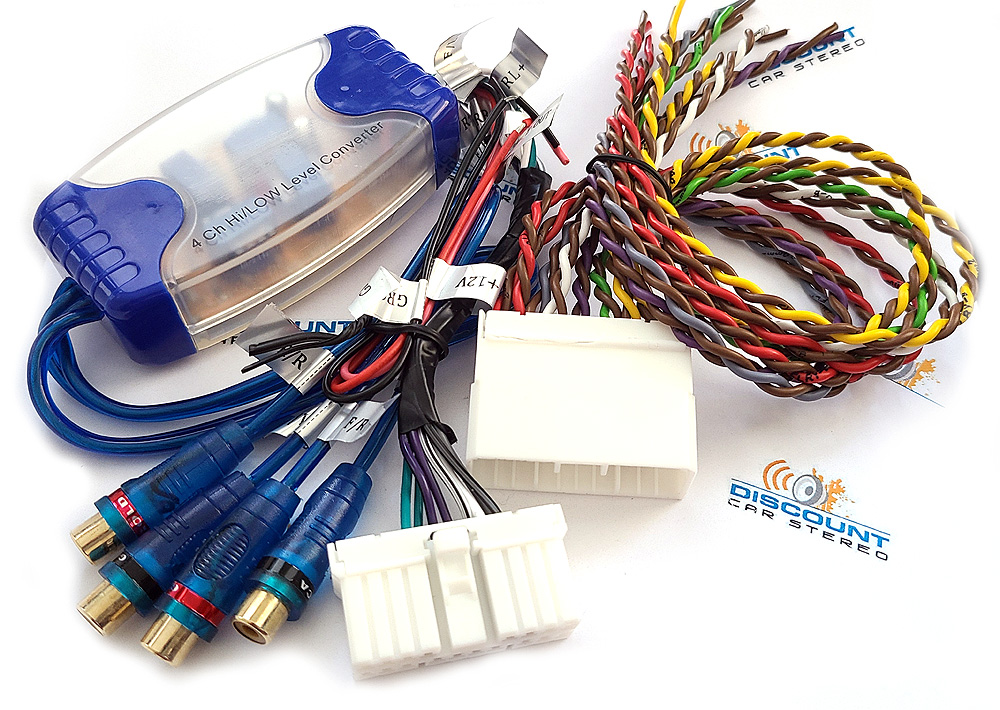

Those wanting to elevate Jaguar/Alpine Premium ICE system to a new level or clarify and fullness will be pleased to find this harness. The ARH-JAG bypasses the OE amplifier (LNF4170AA, 4W8318C808AA) allowing vehicle owner the flexibility to install new speakers or retain old speakers, tweeters or combination thereof and power them with aftermarket amplifier of choice, all this while also retaining the rest of the Premium I.C.E. system including radio, auto CD changer, navigation etc. This welcome addition does not require cutting or modifying vehicle's harness should it become necessary to re-connect original amplifier if and when vehicle is offered up for sale/trade. Signal sensing technology ensures aftermarket amplifier turns on/off when radio is turned on/off and unlike most universal line converters; the ARH-JAG includes matching 18-pin plug-n-play connectors (male/female) so to not compromise vehicles wiring integrity. Installs at the luggage compartment and does not require radio removal. Exclusive to 2000-06 XK (X100) and 2000-03 XJ (X308) with Alpine I.C.E Premium audio systems. Not applicable to 1998-06 Harman Kardon (LNC4170AA, LJB4170BA, LJA4170BA etc.) amplifier systems, nor X150/X350
» Exclusive to 2000-06 X100 and 2000-03 X308 Jaguar with Alpine premium systems only
» Premium I.C.E amplifier is bypassed but factory radio, CD auto changer, Navigation; all remain connected and operational.
» In order for the radio, CD auto changer, navigation etc. to remain functional; the OEM Premium amplifier must remain connected (outputs bypassed).
» Provides aftermarket amplifier with 4 full-range RCA pre-amp inputs and remote turn-on.
» To install a subwoofer amplifier or powered subwoofer and retain the rest; purchase our AIH-JAGAP instead.
» Red LED trigger indicator
» Plug-n-play to OE 18-pin amplifier speaker output plug in luggage compartment.
» Provides up to 8 speaker channels: RF, LF, RR, LR, mid/tweeter (L/R A-post), plus (1) dual cone subwoofer or separate left/right configuration.
» 1 foot (18-gauge) speaker wire pairs.
» This is a custom built harness that is NOT returnable unless defective for replacement of the same part (no refunds or exchanges)
INSTALLATION: (At factory amplifier location in luggage compartment)
1. Disconnect 18-pin plug from OE amplifier (12-pin power plug remains connected).
2. Connect 18-pin OE amplifier plug (from step 1) to harness 18-pin socket (with speaker leads)
3. Connect harness 18-pin male plug (gray) to OE amplifier socket vacated in step 1.
4. Connect harness speaker leads to aftermarket amplifier(s) speaker outputs (user decides configuration)

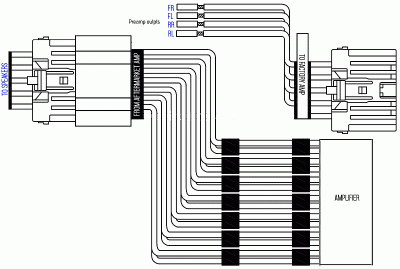

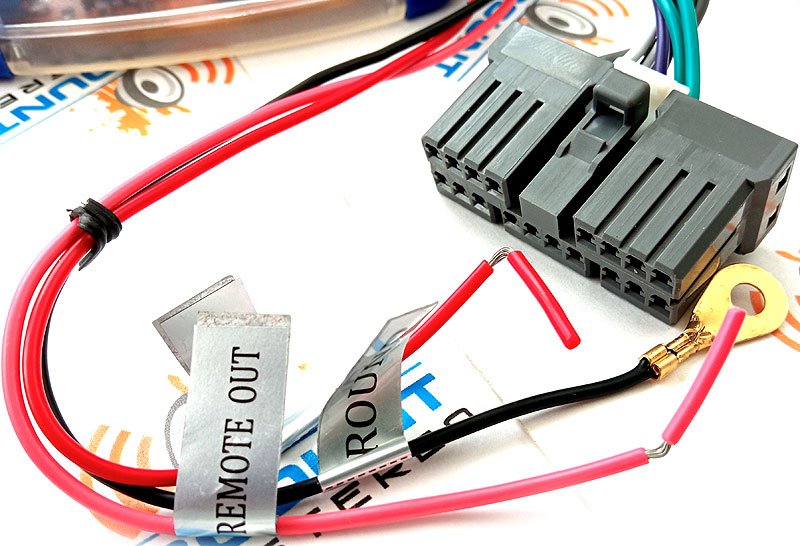

5. Connect harness PINK wire to aftermarket amplifier remote turn-on.
6. Connect Front and Rear RCA's to aftermarket amplifier. Requires patch cord or Male-male splice (sold separately).
7. Connect harness RED (12V) wire to vehicles battery power (always on) and BLACK wire to ground.
8. Finalize by consulting aftermarket amplifier installation manual.
WIRE COLOR SCHEME:
All (brown wires=negative)
RF: Gray/Brown
LF: White/Brown
RR: Purple/Brown
LR: Green/Brown
RF/LF Tweeters: Yellow/Brown
RR/LR (Convertible) or Subwoofers: Yellow/Brown
1. Works in 2000-06 XK Coupe/convertible and 2000-03 XJ with Alpine Premium audio system only.
2. This custom built harness is NOT returnable unless defective for replacement (same part). No refunds or exchanges.
3. This harness does not ship same day. I must first be assembled (built) after which time it is then shipped using shipping method selected at checkout.
