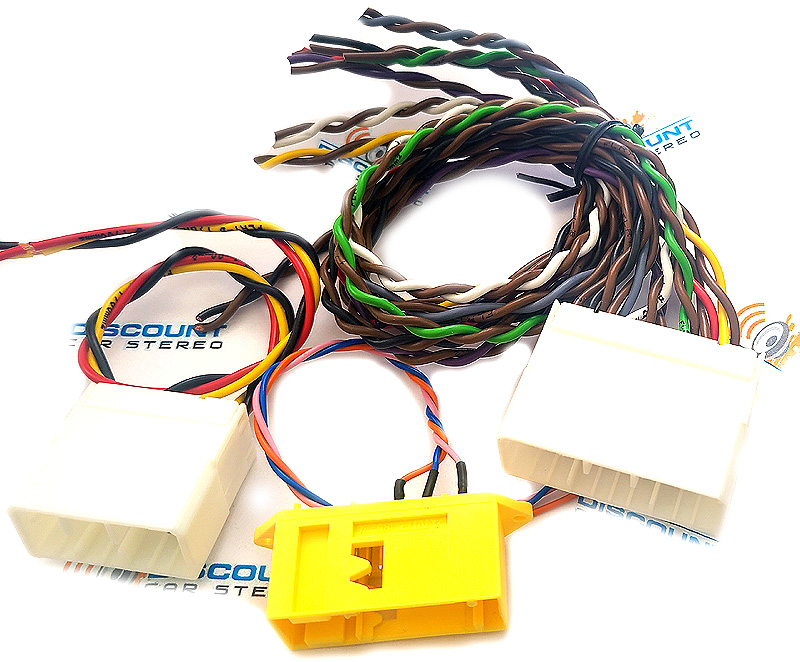

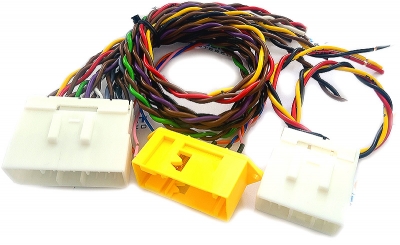

ARH-JAG2P 2000-06 Jaguar Premium Radio & Amplifier replacement harness

In stock (2 available. May require assembly*)
  • $64.98
Market price: $79.95, you save $14.97
-19%
Replace factory radio & amplifier in 2000-06 Jaguar premium audio systems.
Restrictions apply. Please read entire description, warnings, install guide etc. prior to ordering.
Score: 5.00 (votes: 1)
Reviews: 1
1
Qty:
  • Net weight
    1 lbs
  • Part Number
    ARH-JAG2P
Install aftermarket radio, amplifier of choice in select 2000-06 Jaguar premium audio.

Many "car audio technology" advances have been made since these cars were introduced, and if you would like to be able to make/receive hands-free calls, satellite navigation, play music from a digital device, USB stick/memory card, iPod or Bluetooth from a single unit; you should consider replacing the OE radio. Unfortunately replacing Jaguar/Alpine premium radio and amplifier with aftermarket requires rewiring the entire system; however with the ARH-JAG2P harness, the process just got a lot easier. The ARH-JAG2P harness provides power, amp/antenna turn-on, illumination, steering wheel control signals and up to 8-speaker signal channels (front/rear door speakers, tweeters and subwoofers or any combination thereof) to replacement amplifier. This welcome addition does not require cutting or modifying vehicle's harness because the included 18, 12 and 26-pin connectors mate perfectly with factory radio plugs and does not compromise vehicles wiring integrity should it become necessary to re-install original radio/amplifier if and when vehicle is offered up for sale/trade. Exclusive to 2000-06 XK (X100) and 2000-03 XJ (X308) with Alpine premium audio system only. Not applicable to Harman Kardon amplified system.
» Exclusive to 2000-06 Jaguar Alpine premium system only Not for Harman Kardon premium system.
» Provides aftermarket replacement radio the necessary wiring without cutting/splicing factory plug/connectors.
» Factory amplifier, GPS and CD changer must be disconnected and will no longer function.
» Provides wiring (1 foot) for up to 8 speaker: Main door speakers/tweeters and subwoofer(s). Keeping radio and replacing OE amplifier? See our AIH-JAGAP instead.

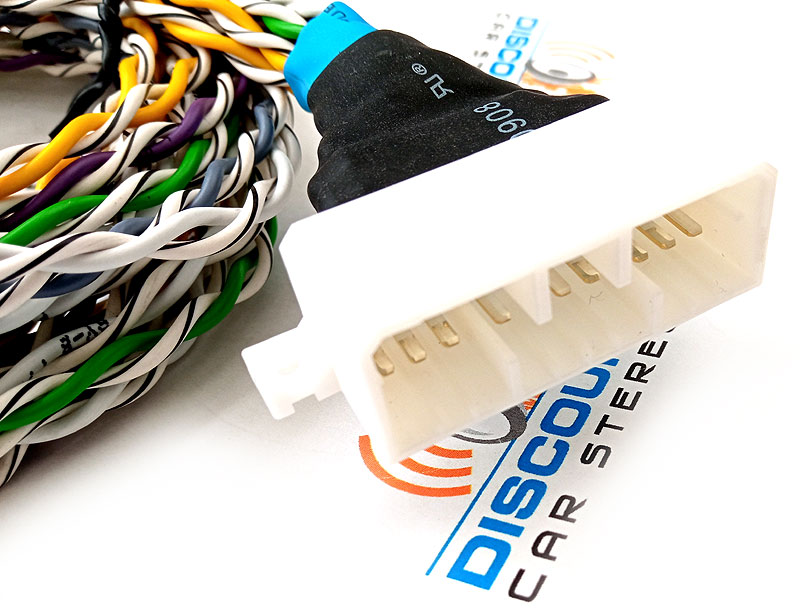

» Includes 18-pin amplifier speaker connector, 12-pin radio power connector and 26-pin MQS connector.
» Eliminates the need to run new wiring to OE speaker locations.
» Retain existing speakers or install new speakers/subwoofers of your choosing.
» This cable is custom built and is NOT returnable unless defective for replacement of the same part (no refunds or exchanges)
INSTALLATION
1. Remove radio from dash

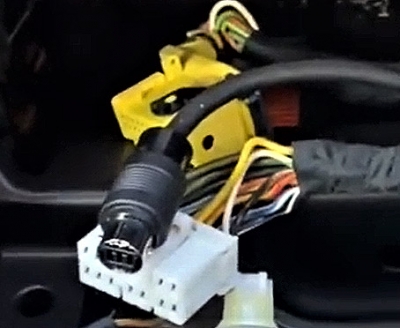

2. Disconnect 12-pin (white), 26-pin (yellow) MQS plug and 8-pin AI-NET plug from radio
3. Connect harness 12-pin and 26-pin sockets to OE plugs from step 2
4. Route new radio RCA outputs and remote turn on wire to trunk area (where new amplifier will reside)
5. Finalize aftermarket radio install according to radio installation guide

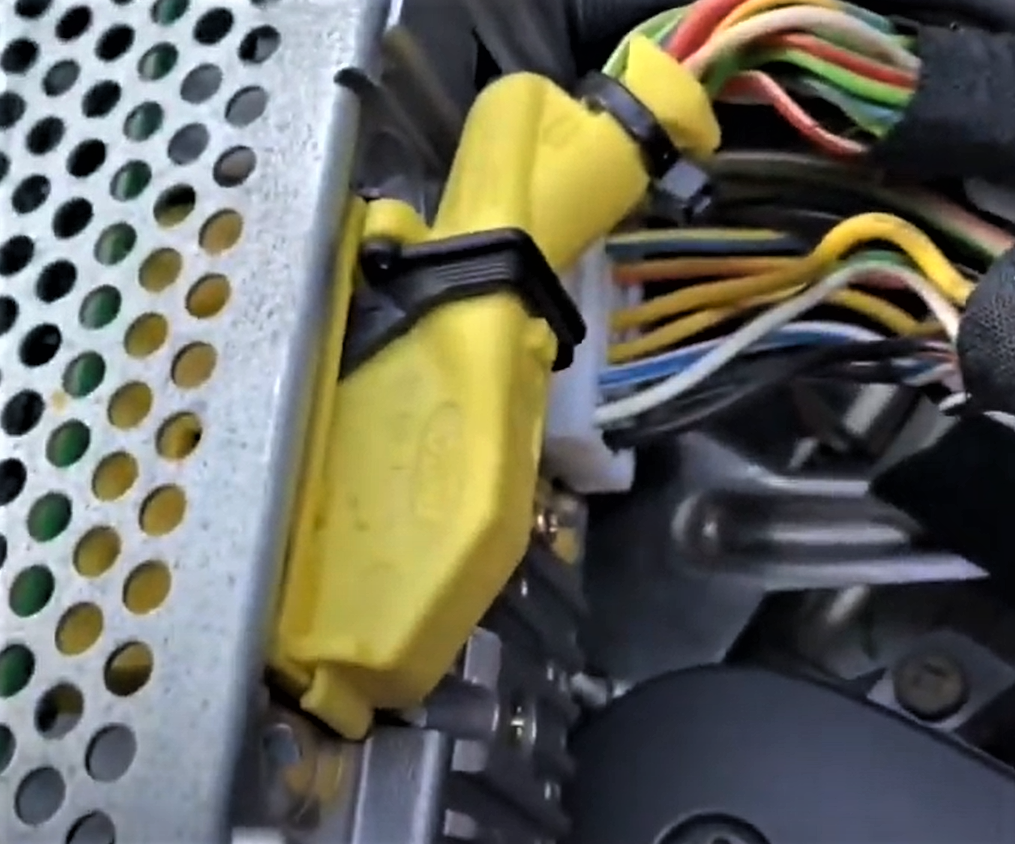

6. Disconnect 18 and 12-pin plugs from OE amplifier
7. Connect 18-pin OE plug to harness 18-pin socket (with 12 inch speaker leads) See wiring diagram
8. Connect harness speaker leads to aftermarket amplifier(s) speaker outputs
9. Connect RCA's and remote turn-on wire to aftermarket amplifier.
10. Consult aftermarket amplifier installation manual to finalize install.

Avoid costly returns. Please read entire INSTALL GUIDE, frequently asked questions prior to ordering.

1. Works in 2000-06 XK coupe/convertible and 2000-03 XJ Alpine premium audio systems only. (Not for Harman Kardon, X300, X350 etc.)
2. This customized cable is NOT returnable unless defective for replacement (same part)
3. This harness does not ship same day. I must first be assembled (built) after which time it is then shipped using shipping method selected at checkout.
